ILLUMINATION

• Ultra-bright,energy efficient,long-life Red or Green LED.

• UV-stabilized ultra-clear acrylic edgelit panel provides consistent,uniform illumination.

• Double face utilizes factory installed silver or white mylar background panel.

ELECTRICA

• 120-347V.

• Charge rate power“ON”LED indicator light and push-to-test switch for mandated code compliance testing.

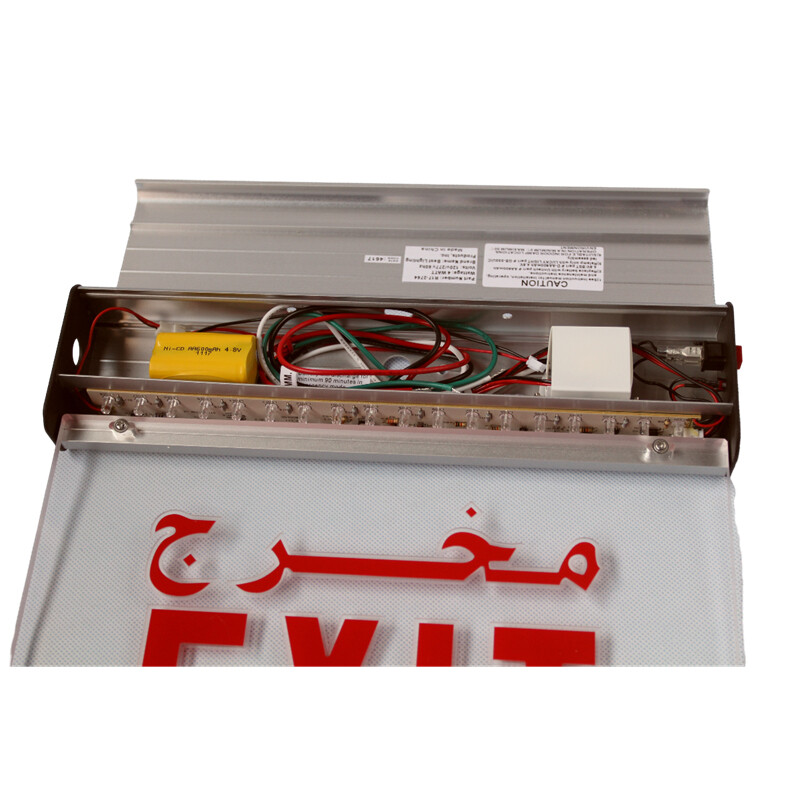

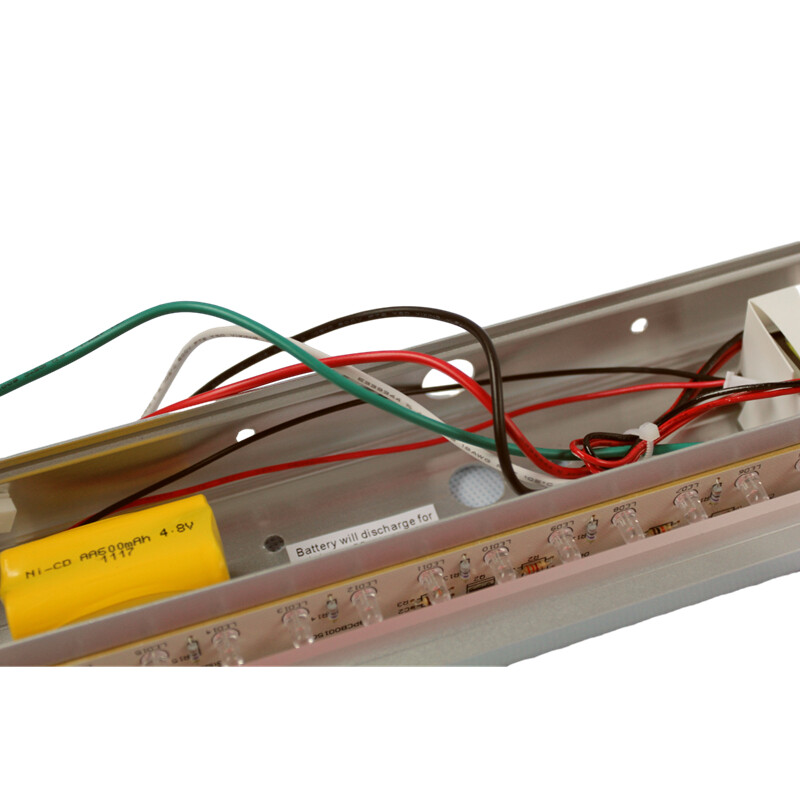

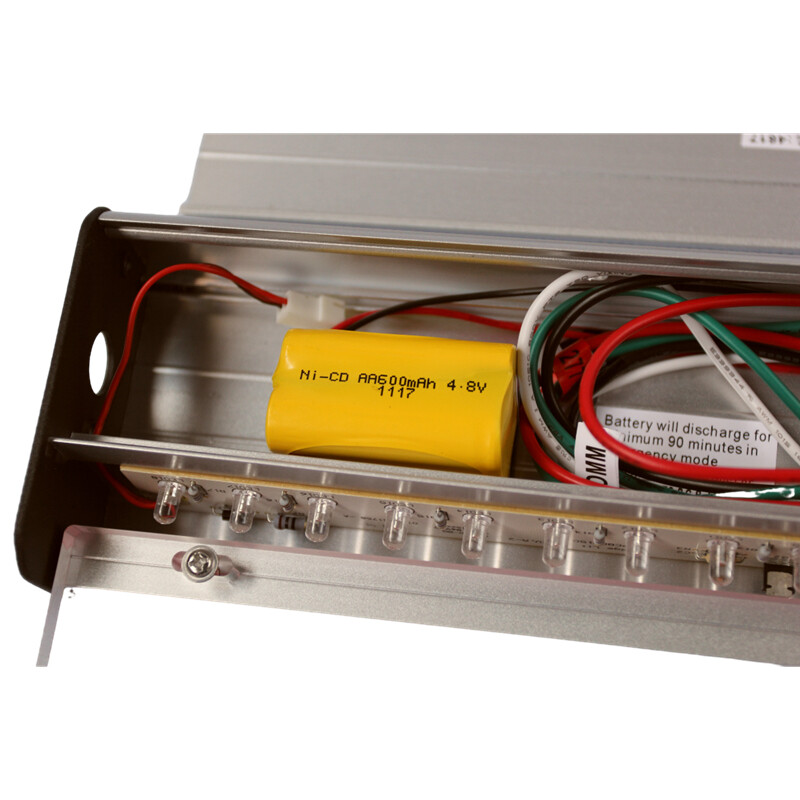

• Long life,maintenance-free,rechargeable NiCd battery.

• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.

• Fully automatic solid-state,two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

• Internal toggle switch for red or green letter color selectio n for RGmodels.

MOUNTING

• Aluminum mounting canopy included for top,end or back mount.

HOUSING

• Premium-grade,extruded aluminum housing (also available in black or white powder-coated finishes).

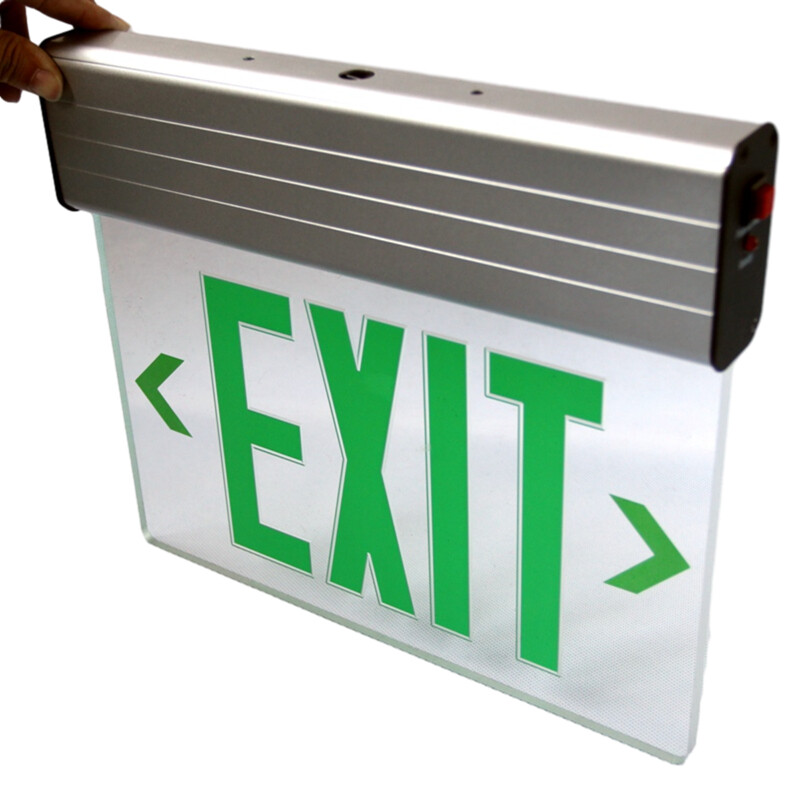

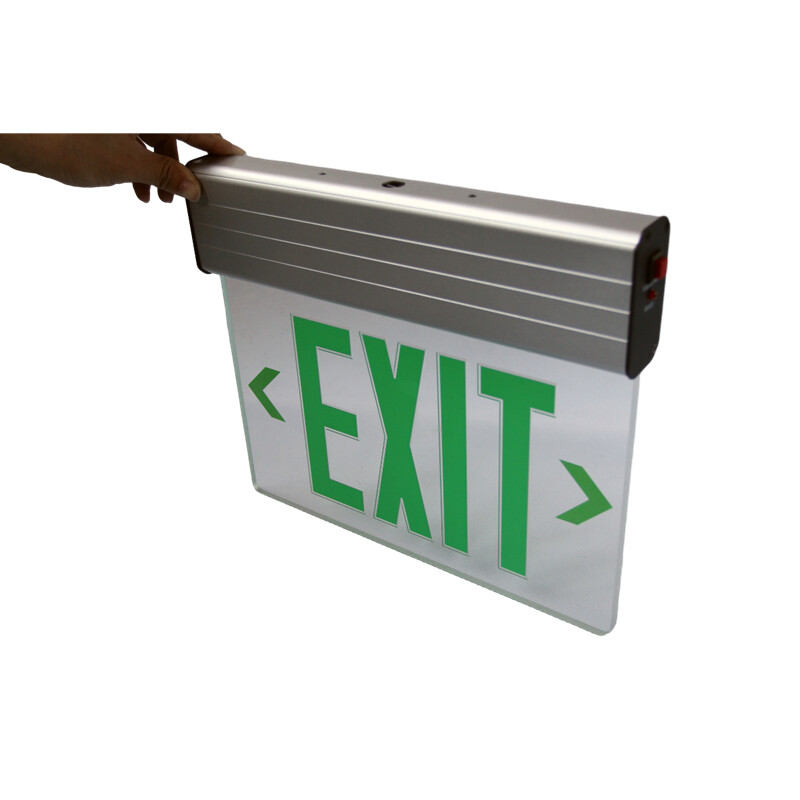

• Self-adhesive chevron appliques and guide template provided for directional indication.

WARRANTY/LISTING

• Five year warranty on all electronics and housing.Battery pro-rated for five years.

• Meets  UL924,NFPA   101  Life   Safety  Code,NEC,OSHA, Local and State Codes.

• UL listed for damp locations.
